Windpower to the Poor in Ghana

Training course 12-23 July 2004

Training local craftsmen to build small wind turbines for small-scale electrification.

NEW pictures of the aftermath -> "We have 9 turbines up now, most on 18 m guyed towers.  6 Piggotts (4 of24V and 2 of 12V) and 3 Bergeys"
by Hugh Piggott
Scoraig Wind Electric

More about the project
as a whole.

EnterpriseWorks Ghana
"EnterpriseWorks believe that sustainable development comes from profitable private enterprise."
Rural Energy and Environment Systems
(REES Ghana)


World Bank funding

Thanks to Senyo Dake (Seli Technologies) and Wisdom Togobo (REES) for many excellent photos used here.

In July I went to Ghana to assist with training 18 local craftsmen and technicians.
We built my standard 2.4 metre diameter axial flux machine with a few small modifications.
I arrived a few days early and helped to collect materials.
One day we visited Victor Adjei and had a look at his Bergey XL.1 on an 80 foot tower in the back yard!

From left to right, Hugh Piggott, Senyo Dake of Seli Technologies, Alan Brewis of EnterpriseWorks Ghana, Wuddah-Martey of REES, and Victor himself.

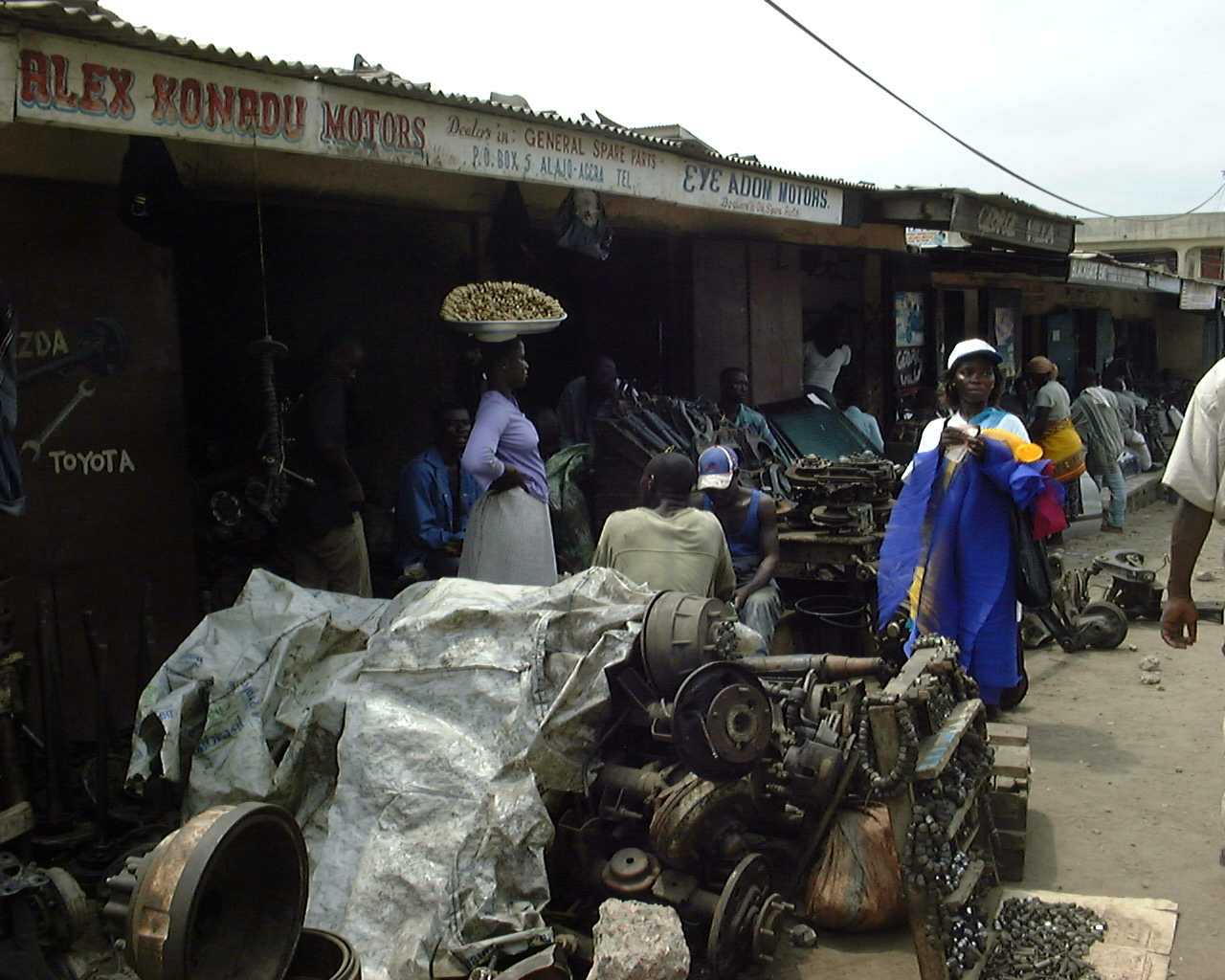

I also spent some time in the local markets helping to hunt down parts.  It turns out that the Opel Vectra car (from Germany) has an ideal rear wheel bearing just like our Vauxhall cavalier in the UK.  In fact it's the same car with a different name on it.
We also tried the Opel Kaddet (a more common model) but the stub axle is very hard to remove.

Training course


On Monday morning we started the course at EnterpriseWorks offices, getting to know each other.
I showed some video footage and Powerpoint presentations to introduce the basic design ideas.

Then we moved to Accra Polytechnic where we spent most of the course using their ample workshop facilities.

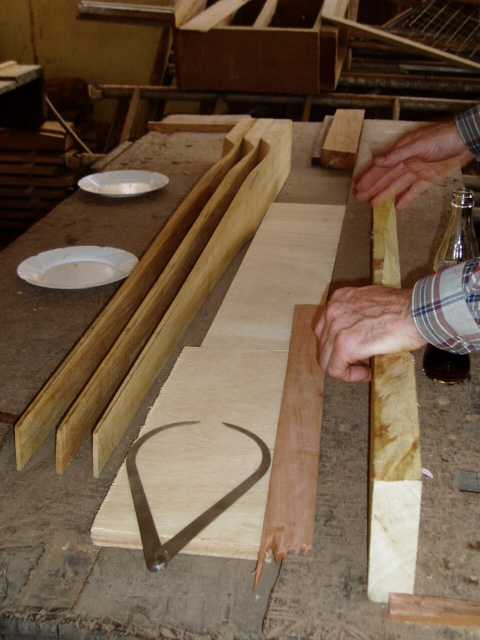

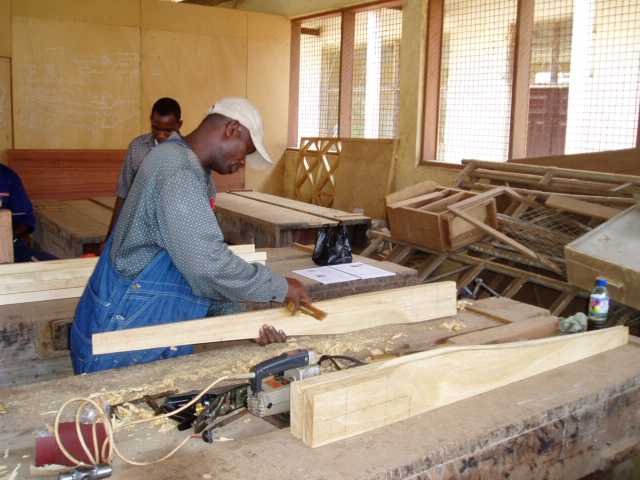

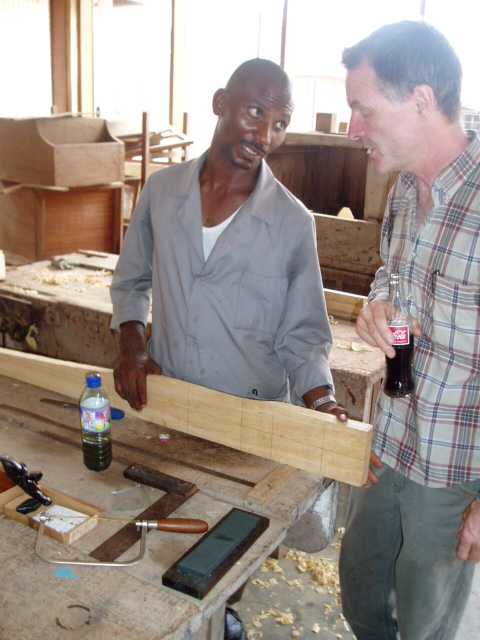

MacCourage Alorvor of Mighty Sparks Company Ltd carving blades from local wood.
Courage found us some very nice wood called 'emory'(?).
This is a smooth hardwood with interlocked grain.
It was nice to work with when unseasoned but we did find out that it warped later.
In the future it will be necessary to season the wood first.

Michael Atidigah of MICKYLOG CRAFT was also on the blade carving team.  I did find it hard to spend enough time with these guys because their workshop was located a short walk away from the rest of the action.  At one point we discovered that Michael had used the wrong table for the blade trailing edge drop.  It's so easy to use the thickness measurements by mistake.  But this produced a blade with very coarse pitch that would not work at all well.  It's worth being wary of this pitfall.

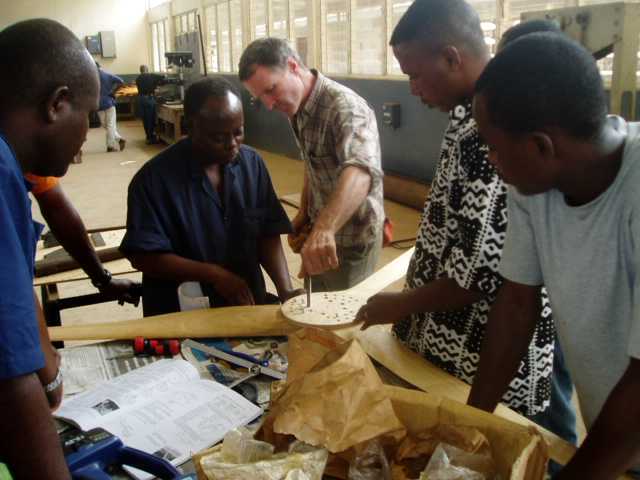

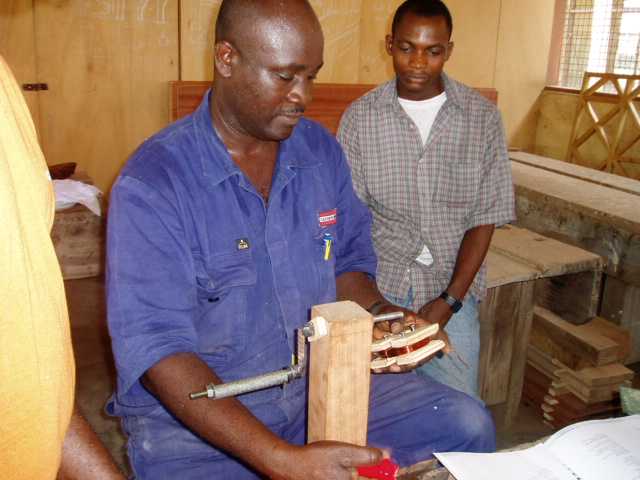

Checking the blade assembly to make sure that a stuff will pass through it squarely.  It definitely helps to drill an over-sized hole in the part beyond the back disk.  The stud fitted nicely.

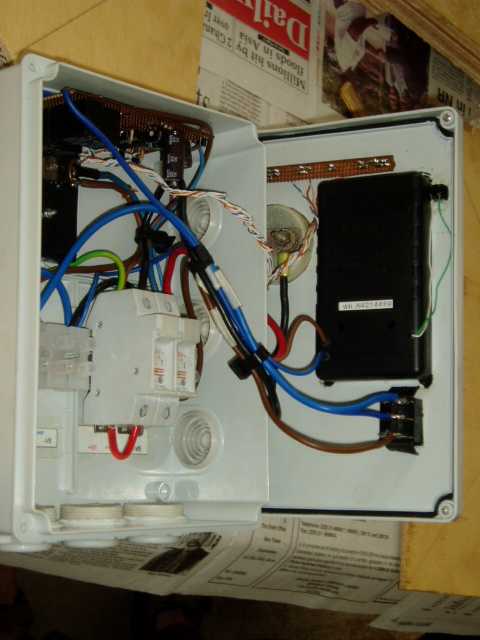

Working with Andrew K. Etwire of Power World Ltd (holding book) on the controller for the windmill.
Andrew has a lot of nice ideas.  For example we used a multi-meter to display battery voltage on the push of a button.
This gives low-cost, accurate readings without exhausting the battery in the meter.

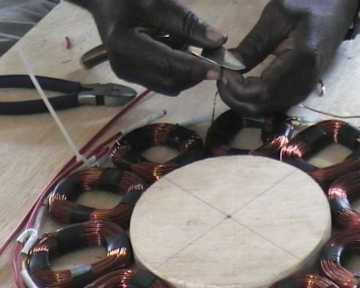

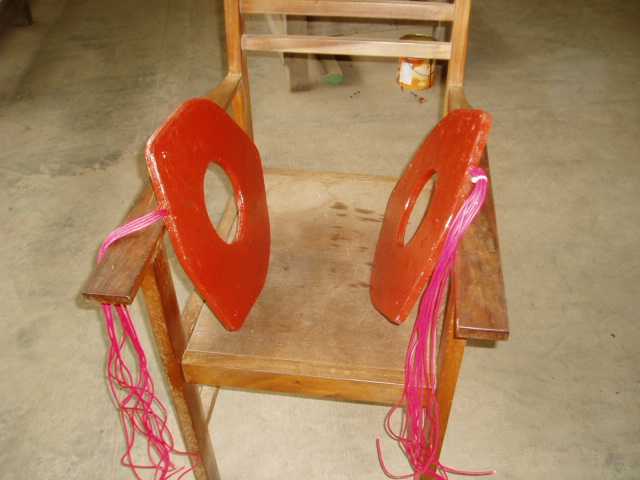

Moses Kattah winding coils assisted by Eric Siaw from Seli Technologies.
Moses taught me that it is not necessary to set the reel of wire up on an axle.
He takes it off the side of the reel. I would have expected it to cause twisting and kinking but in fact it works fine.

Moses strips the enamel off the wire in the same way I do - with a knife.

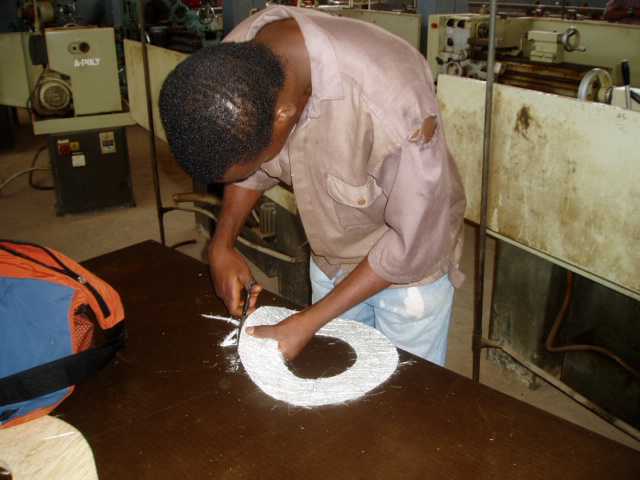

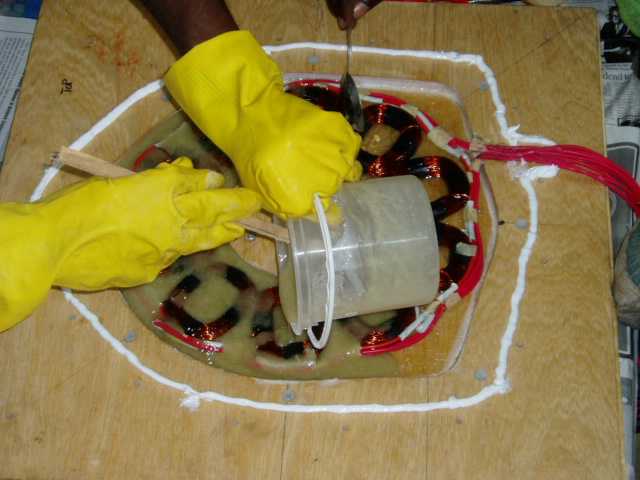

Cutting out the chopped strand mat and mixing the polyester resin.
We used very heavy fibreglass, but that seemed to work OK.
More of a problem was getting the right amount of catalyst.
I re-learned the hard way that you have to use a lot less catalyst in high ambient temperatures.
It didn't seem that hot to me, but we had to use about half of the catalyst
specified in the course manual (windmill plans) and we also had to apply the silicone later to prevent it setting.
If things set too soon then you can't make a thin enough casting.
The resin fumes were not too bad - in fact I don't think I could smell them at all.

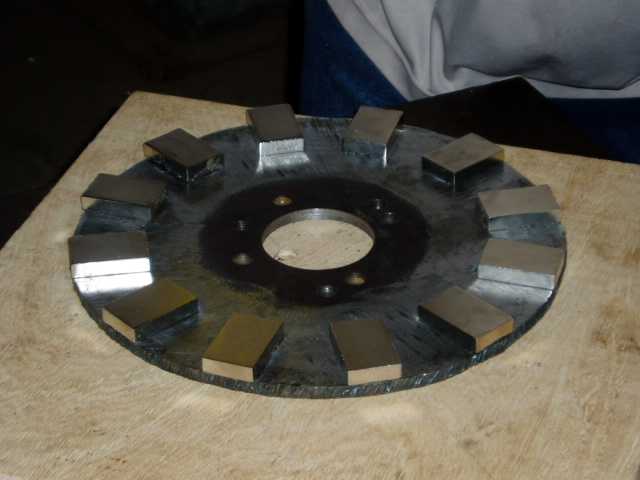

We used 'superglue' to fit the magnets to the disks.
This prevents the possibility of them moving in the moulds after the lid goes on (as has happened a couple of times recently).
When the magnets snap down, the glue can spray out.
Eric Dor from Seli helps Boniface Taylor to get it out of his eye.  Eye protection pays off in the end.

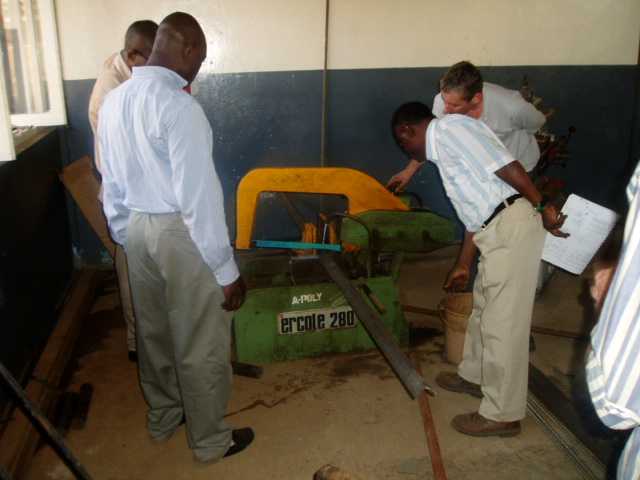

We used hacksaws for cutting.  Much of it was done by Sammy Nelson of Accra Poly (second from right in first picture)
but we also had the use a power saw that did a lot of the heavy cross-cut work.

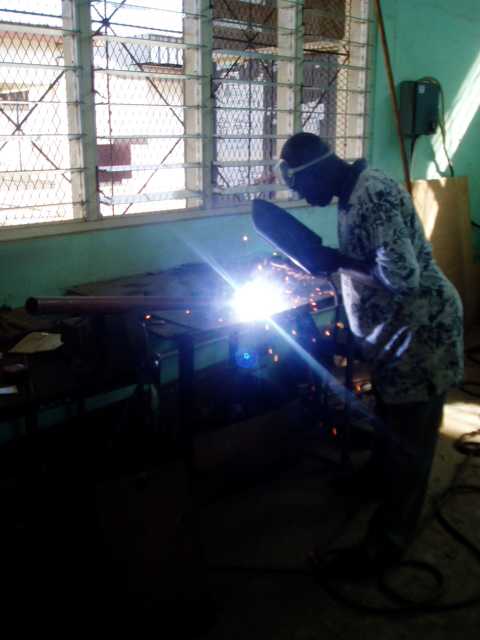

Frank A. Pobi of CSIR did pretty much all of the welding, and we had no complaints.

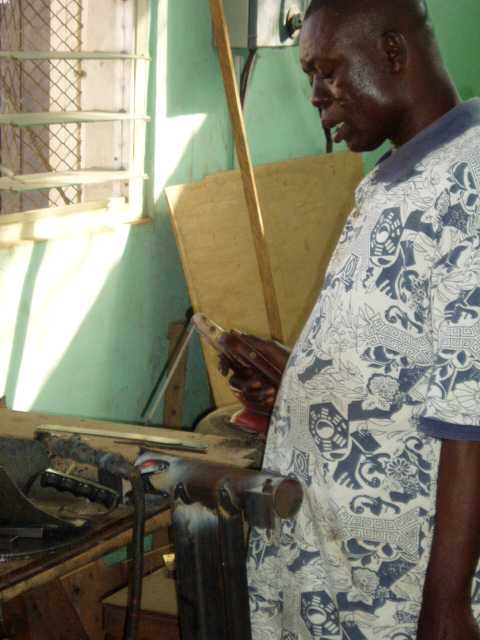

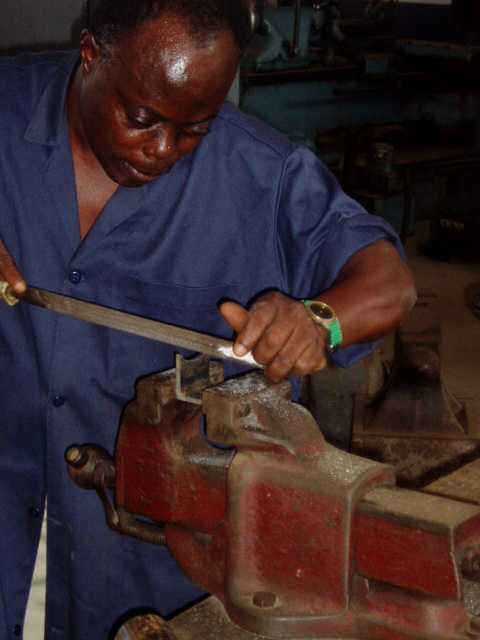

Joseph Dzansi of CSIR shaping the stator brackets.

We used 1" thick spacers to support  the alternator bracket above the table and fitted the stator lugs in contact with the table.
In theory Ghana is metric, but it's just like the UK: in practice most people talk in inches.

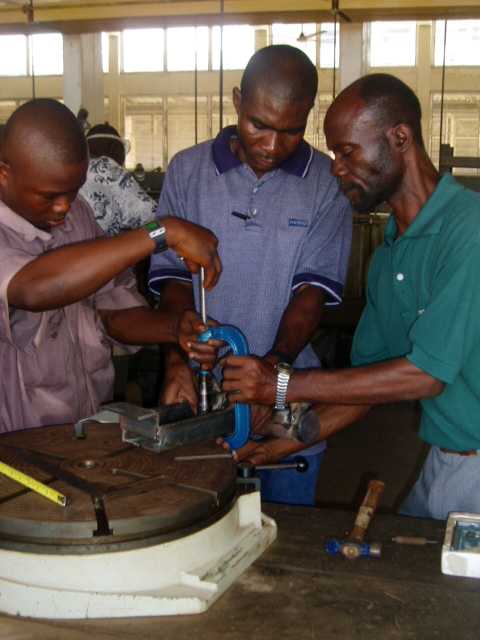

Sammy, Ken and Martin clamp the car axle in the correct position prior to drilling the fixing holes.

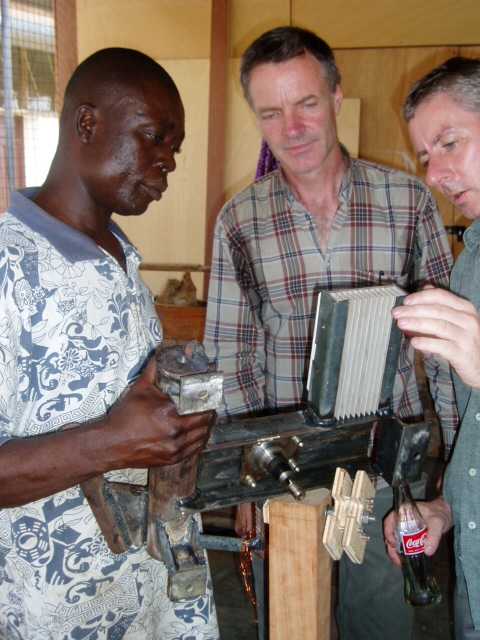

The heatsink (supplied by Andrew) in its bracket (designed by Frank.)

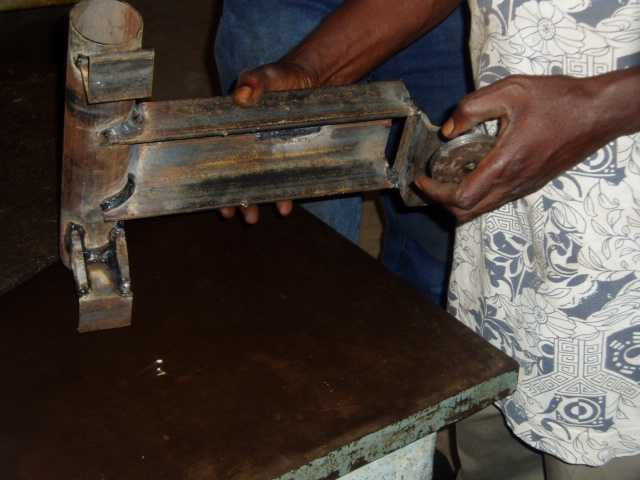

Emmanuel Ocansey of Money Technologies and Investments (Centre) admires the tail hinge
which he personally cut out from 10 mm plate with a hacksaw.
Emmanuel gets my vote as the most useful person in the workshop.  He even brought a cordless drill.

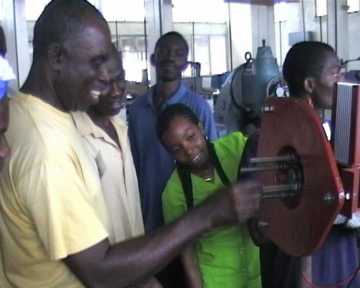

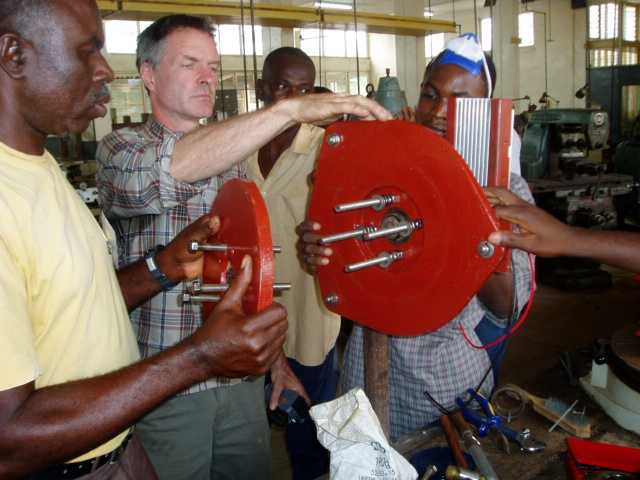

Matt Kuach-Baiden of Solar Winds Engineering Services playing with the partially assembled alternator.
It's fun to watch pieces of steel swarf walking around the stator as you turn the back magnet rotor.

Mr. Baiden fits the front rotor.  Note the jacking screws in position.  We had some problems with stud alignment, due to paint on the rotor faces.

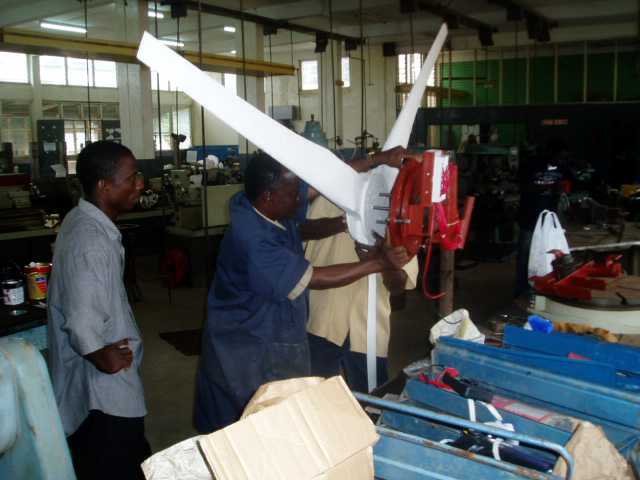

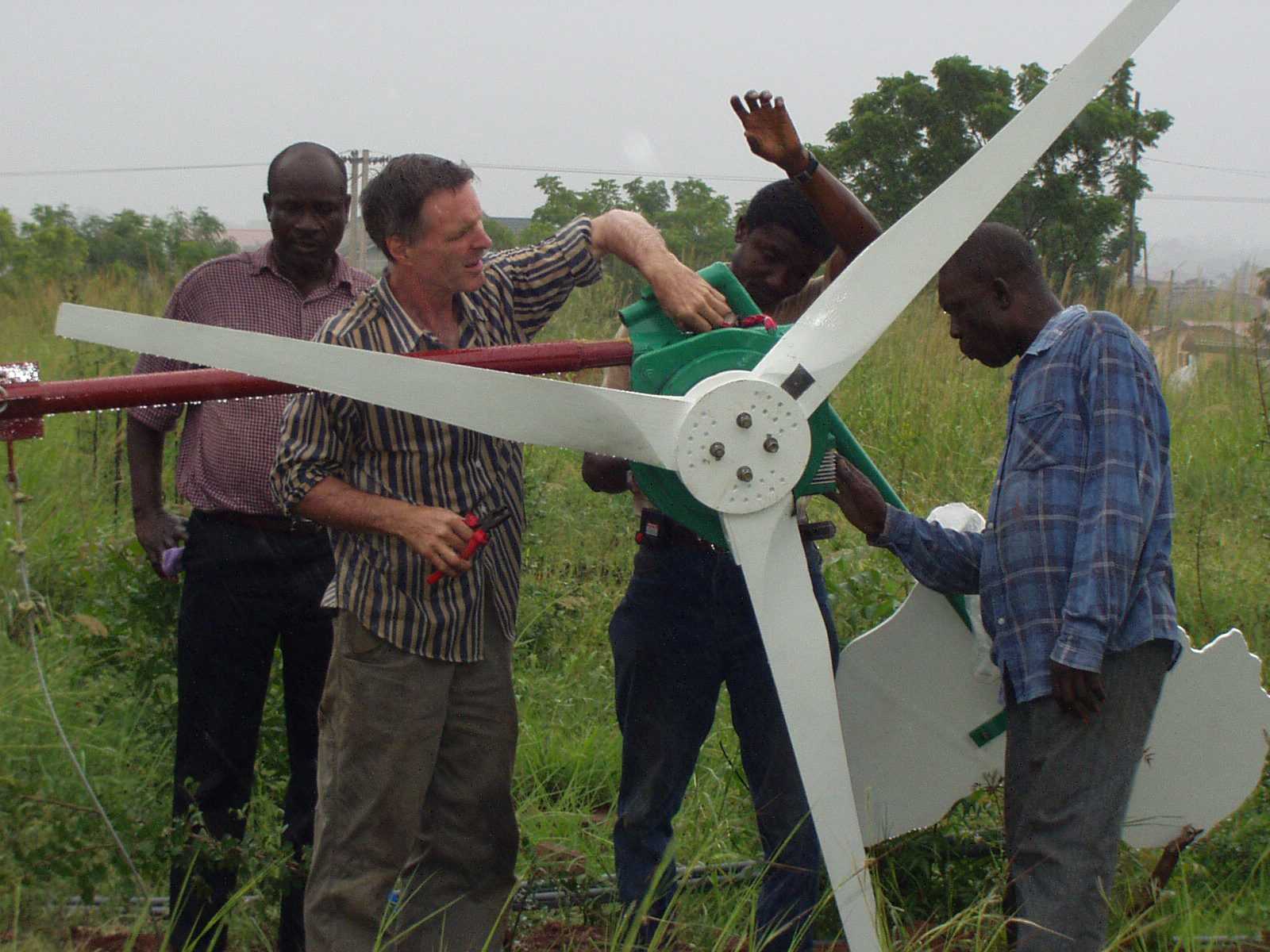

Joseph fits the blade assembly.

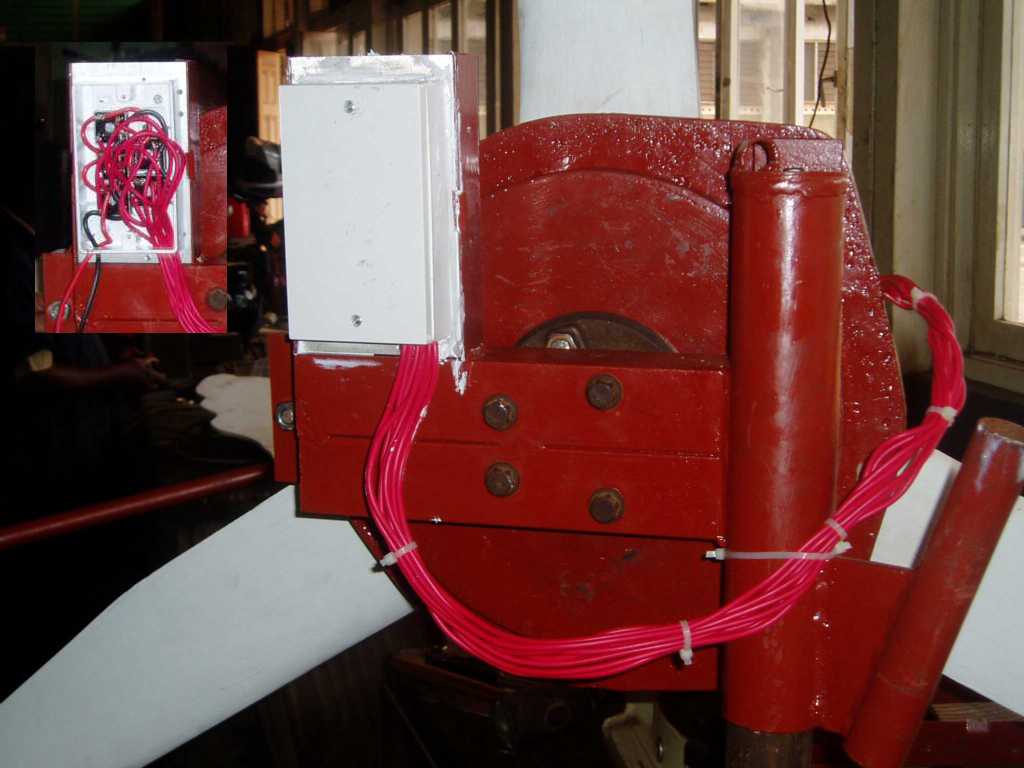

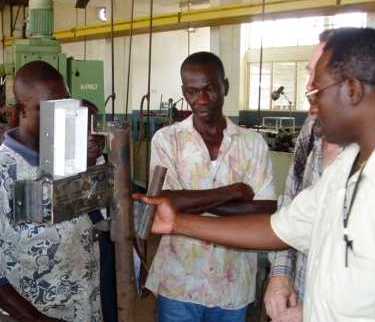

Here you can see the detail of the rectifier housing.  An insert on the left shows the rectifier with cover off.
Andrew had the idea of using a domestic twin socket-outlet box.  Very cost-effective, but it needs a lot of silicone to make it waterproof.

Also note the small section of pipe welded onto the top of the yaw bearing as a cable guide for the wires down the tower.
Wrap the wires over the guide, and tie them on with wire ties.

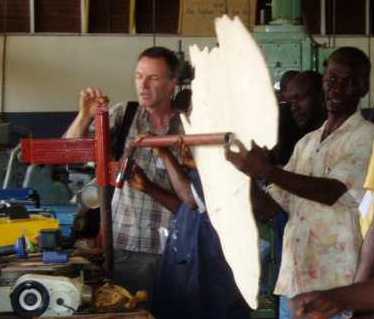

Emmanuael tries the tail vane for size.  A map of Africa.
Maps have been in fashion since the 2003 workshop on Guemes island!

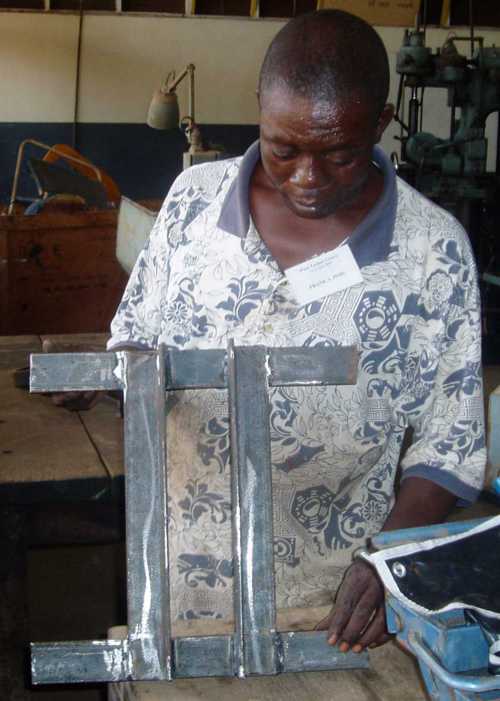

Frank with the tower-base.  We made a tilt-up tower using thick-walled 2" pipe.
Steel is very expensive in Ghana and it may be better to use the local wood, suitably treated.

On site for erection of the test machine at the CSIR Institute of Industrial Research

(where Frank and Joseph work.)

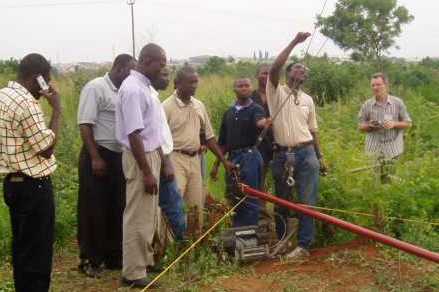

Boniface using the 12-volt winch machine that he uses for erecting NRG wind-monitoring towers to erect the turbine tower.

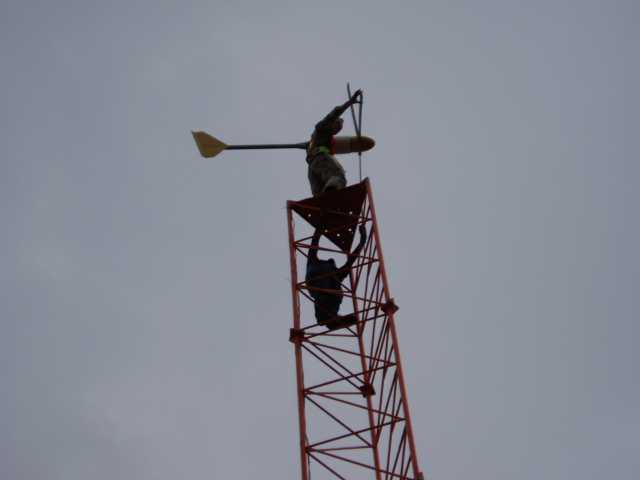

When we had the machine on the tower top it started to really pour with rain.
Africa became a cold place to be.
Rain is a very good omen though.

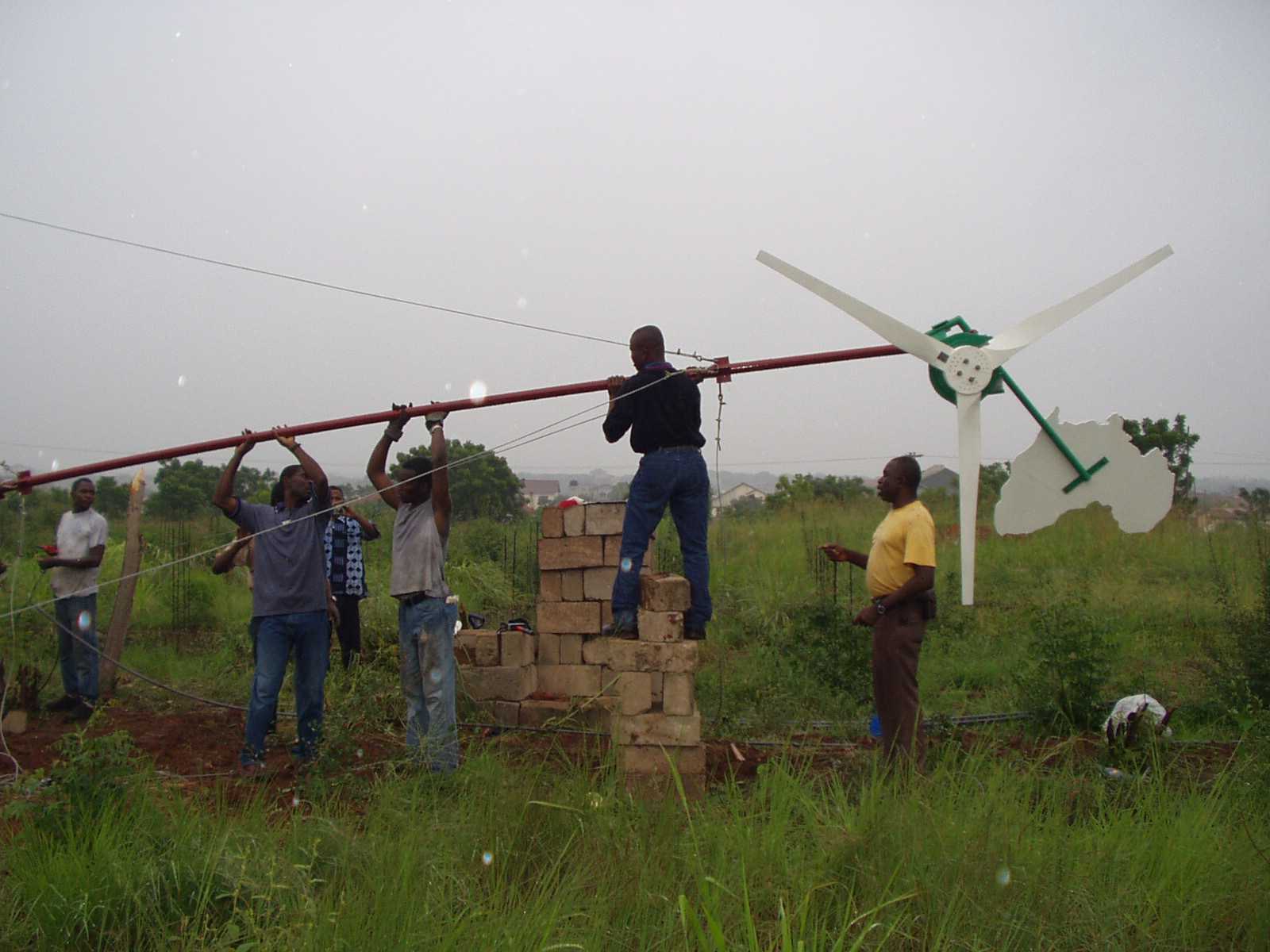

It should not be necessary to do this heroic lifting - the winch should lift the tower on its own - but enthusiasm is infectious.

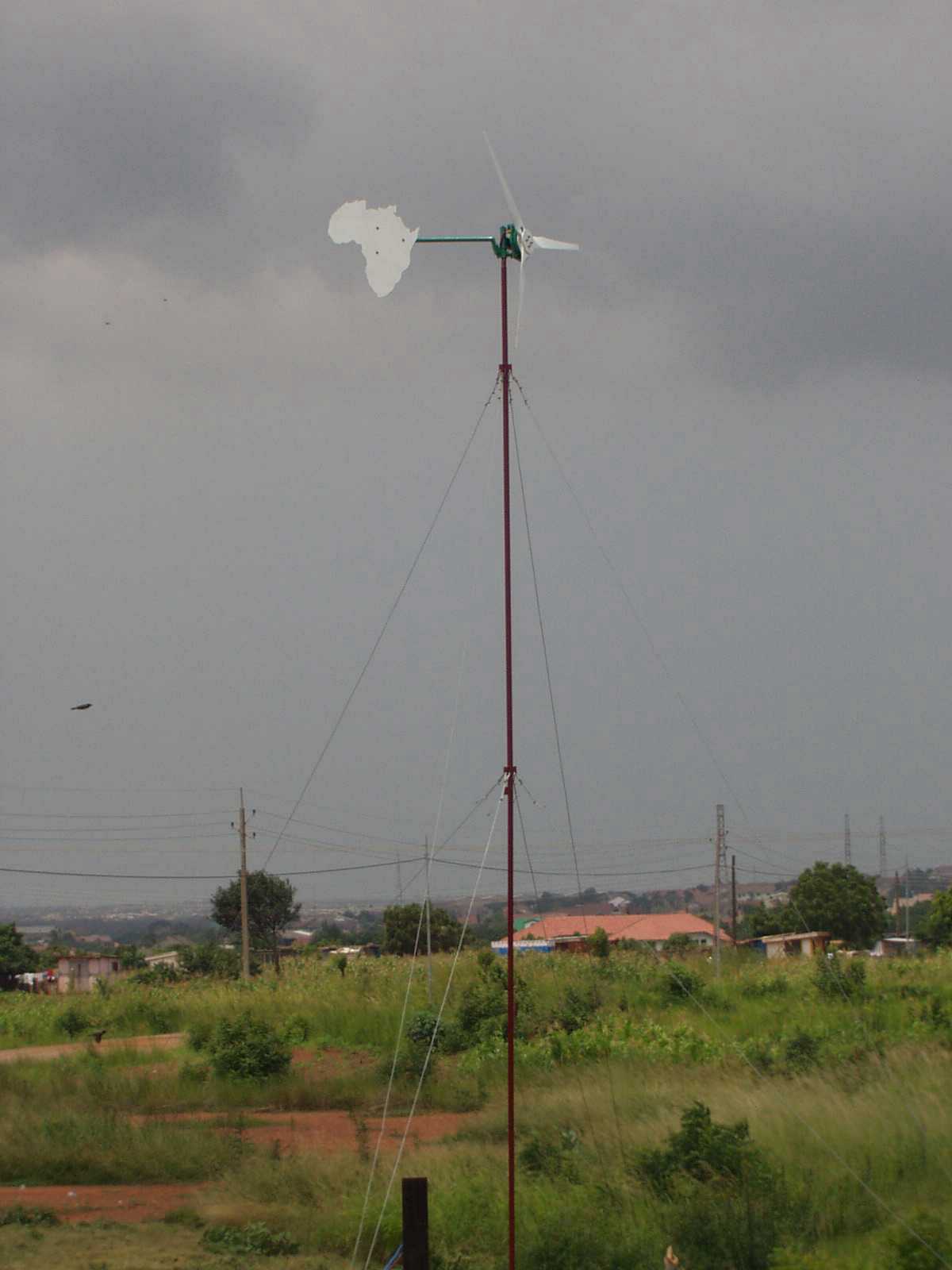

The test machine flies at the CSIR site.  A nice, windy spot.
Coastal Ghana has pleasant, steady breezes and this open site made the best of them.

The machine produced steady power but there was an irritating whistling due to one blade having warped a little.
This can be sorted out in future by using properly seasoned wood.

Boniface addresses the TV cameras at the press launch.  Two TV networks covered the event, and it also made some national newspapers.
All this publicity may help with sales, but it could take a little more organisation to get production under way.

Wisdom Togobo of Renewable Energy and Environment Systems Ghana explains the project's philosophy.
"Everything in relation with the system was obtained in the local market - built by local people in this country.
So there is not a situation where if something breaks down we have to import something from outside."

The principal of the Accra polytechnic and other important folk delivering speeches alongside some wind powered computer equipment.

The ceremonial cutting of the ribbon was accompanied by a trumpet solo and much cheering.
Small-scale windpower manufacture has been launched in Ghana.


POSTSCRIPT IN NOVEMBER 2004



SITES IN OPERATION USE THE LOCALLY MANUFACTURED MACHINES


"We have 9 turbines up now, most on 18 m guyed towers.
6 Piggotts (4 of 24V and 2 of 12V) and 3 Bergeys"

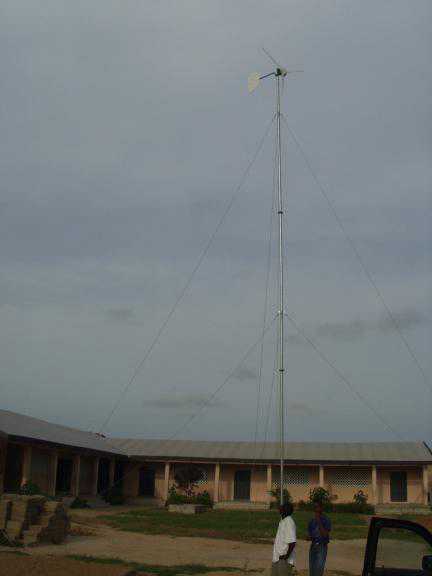

Kpeno school

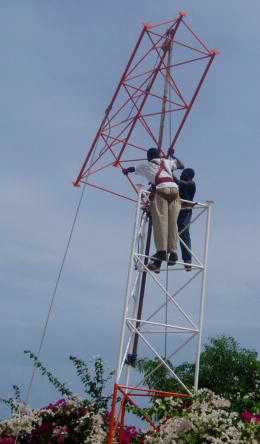

tower assemby at Tobloku

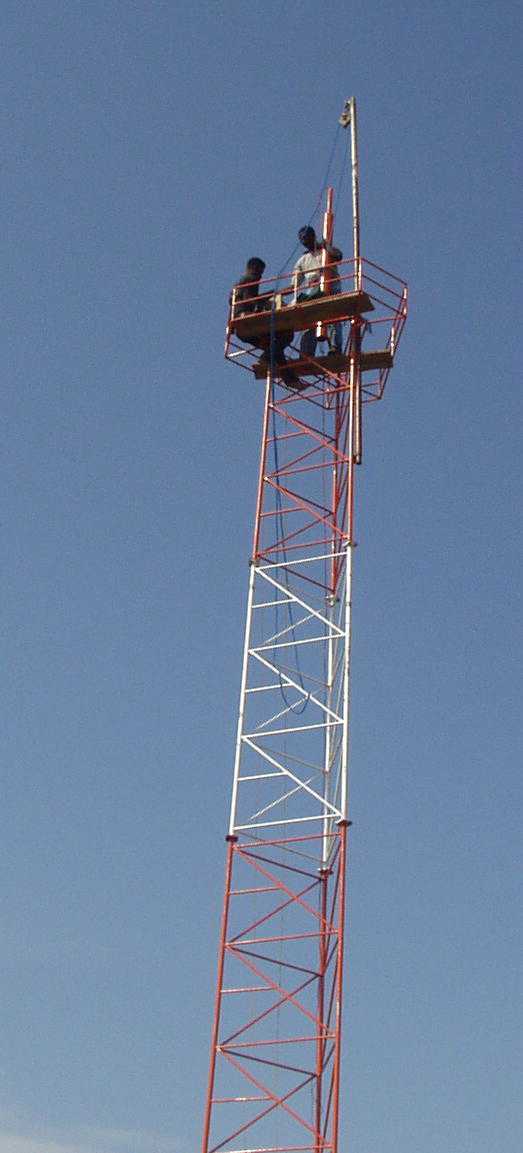

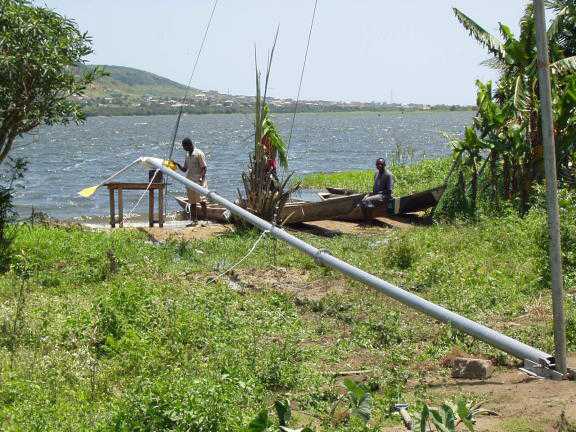

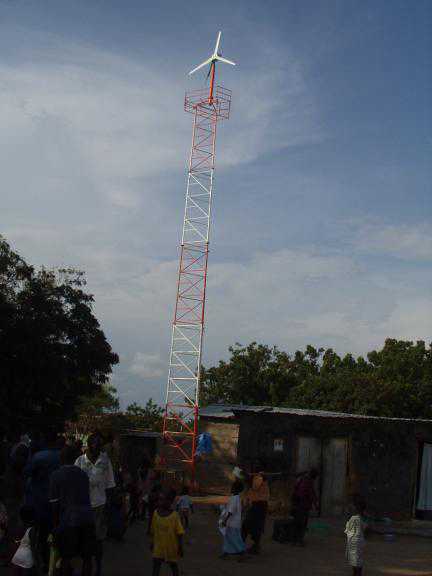

  A Bergey XL.1 at Tofoma




more courses
